Tag Control Setup#

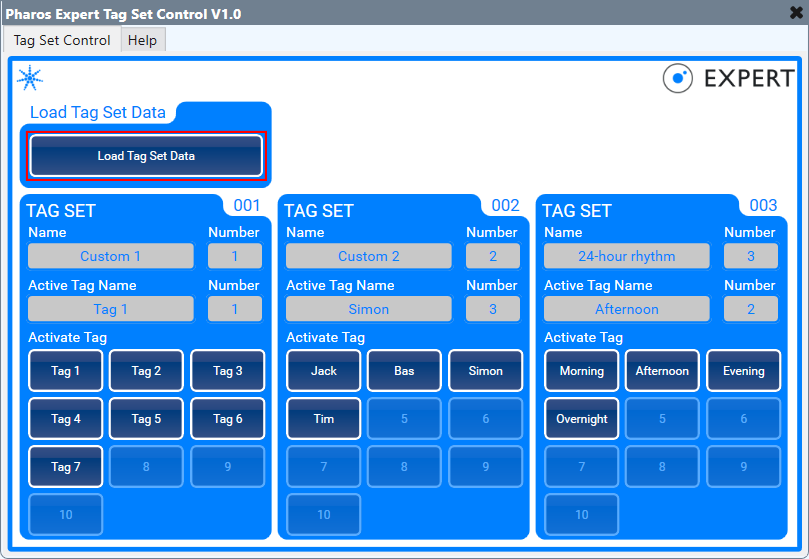

_images/Screenshot_Tags.png

Runtime Elements#

  • Load Tag Set Data

    • Loads the data about configured tag sets from the controller

  • Name/Number

    • The name of the tag set

  • Active Tag Name/Number

    • The name of the currently active tag

  • Activate Tag

    • Activates the selected tag

Designtime Properties#

  • Tag Set Quantity

    • Choices

      • 1-100 (default 1)

  • Plugin Group ID

  • Show Debug

Control Pins#

Pin Name

Input

Output

Values

Disable

✅

✅

0/false, 1/true

Tag Set Activate [Tag 1 to tag 10]

✅

✅

momentary true/false

Tag Set Active Tag Name

❌

✅

string

Tag Set Active Tag Number

✅

✅

number

Tag Set Name

❌

✅

string

Tag Set Number

❌

✅

number

Load Tag Set Data

✅

✅

momentary true/false
