Space Control Setup#

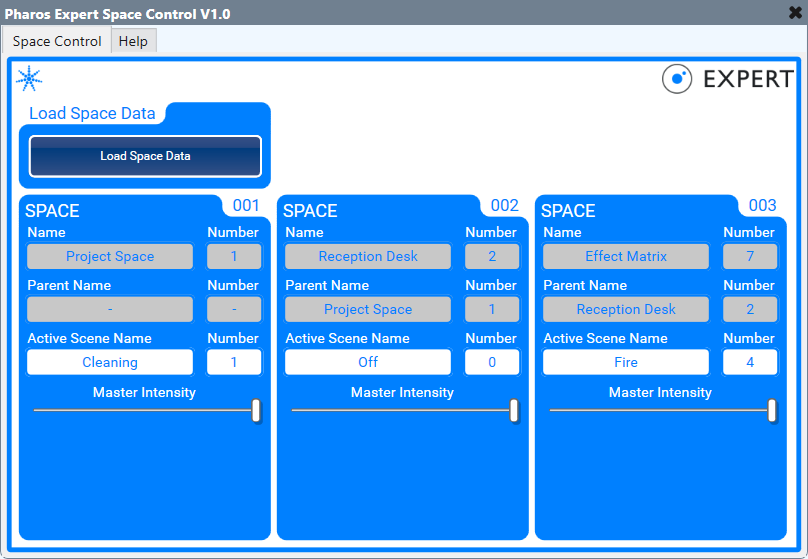

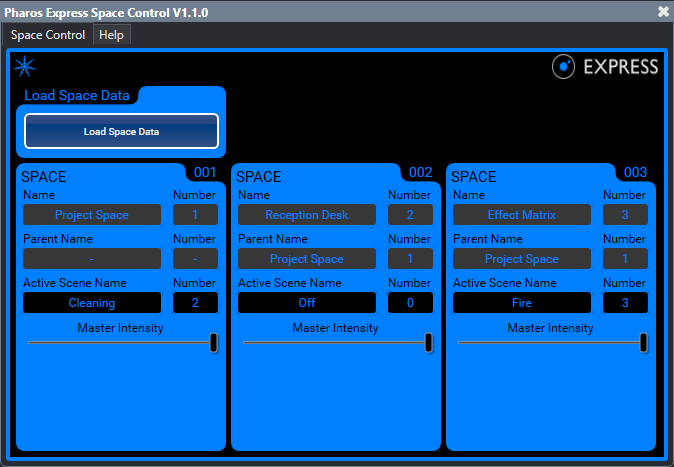

_images/Screenshot_Spaces.png

Runtime Elements#

  • Load Space Data

    • Loads the data about configured spaces from the controller

  • Name/Number

    • The name/number of the space

  • Parent Name/Number

    • The name/number of the parent space, or blank if this is the root space

  • Active Scene Name/Number

    • Allows activation of a scene

  • Master Intensity

    • Allows mastering of the space intensity

Designtime Properties#

Control Pins#

Pin Name

Input

Output

Values

Disable

✅

✅

0/false, 1/true

Space Active Scene Name

❌

✅

string

Space Active Scene Number

❌

✅

number

Space Master Intensity

✅

✅

0-255

Space Name

❌

✅

string

Space Number

❌

✅

number

Space Parent Name

❌

✅

string

Space Parent Number

❌

✅

number

Load Space Data

✅

✅

momentary true/false
