Enqueue Trigger Control Setup#

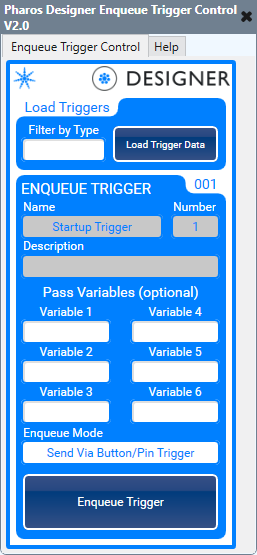

_images/Screenshot_Trigger.png

Runtime Elements#

  • Load Triggers

    • Enter the trigger type (default is Soft) to import into Q-SYS and then click the Load Trigger Data button to execute

      • Unless the integrator indicates a different trigger type to be used please leave the trigger type set to Soft

  • Name, Number and Description

    • Read only fields that are populated by the controllers response to Q-SYS

  • Pass Variables (optional)

    • Pass up to 6 optional variables with the trigger to be fired

    • Coordinate with the integrator to verify what values/indices the receiving trigger is expecting

    • Values can be passed by directly typing the variable field or by input pin(s)

  • Enqueue Mode

    • Send Via Button/Pin Trigger (default)

      • The trigger will only fire when either a button is pressed or the pin is triggered

    • Send When Variables Change State

      • The trigger will fire when the optional variable state changes OR when either a button is pressed or a pin is triggered

  • Enqueue Trigger

    • Fires the trigger within the controller

Designtime Properties#

Control Pins#

Pin Name

Input

Output

Values

Disable

✅

✅

0/false, 1/true

Enqueue Trigger Fire

✅

✅

Momentary/true/false

Enqueue Trigger Load Data

✅

✅

Momentary/true/false

Enqueue Trigger Number Range

✅

✅

string

Enqueue Trigger Variable 1-6

✅

✅

string

Enqueue Trigger Description

❌

✅

string

Enqueue Trigger Mode

❌

✅

string

Enqueue Trigger Name

❌

✅

string

Enqueue Trigger Number

❌

✅

string
